Product Details

<
>

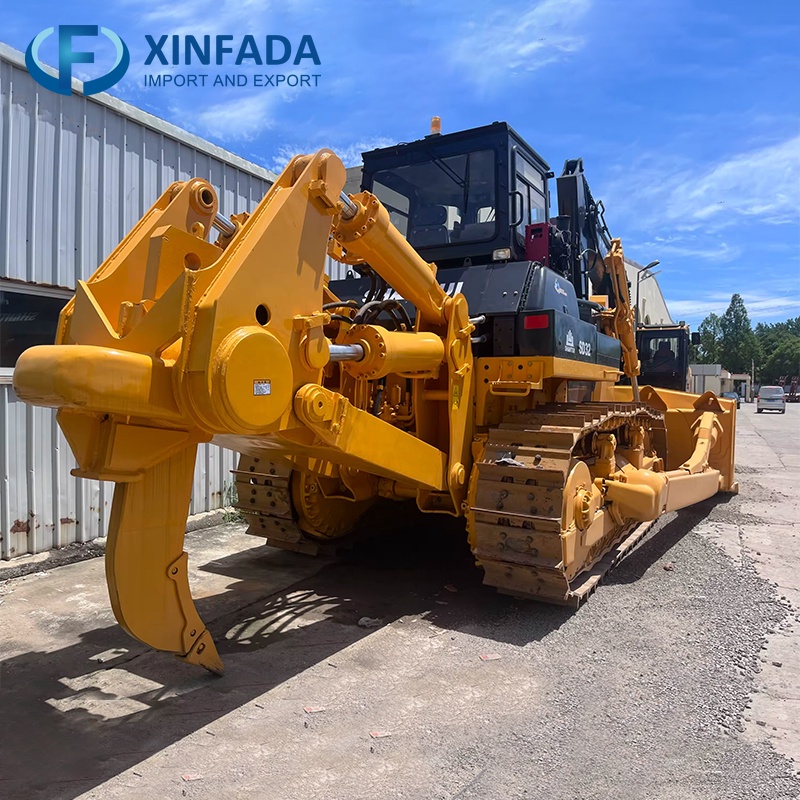

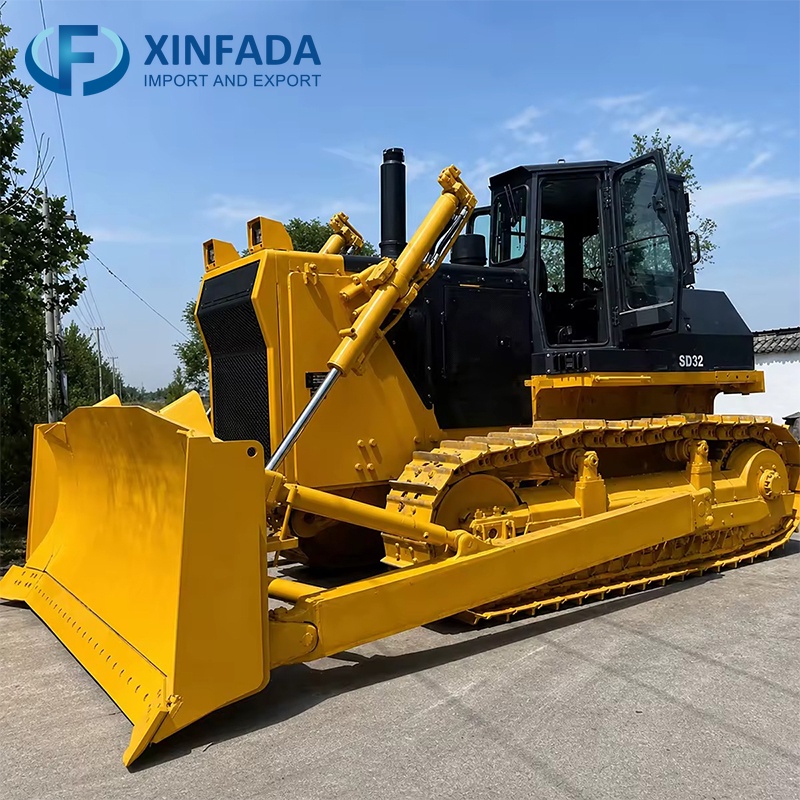

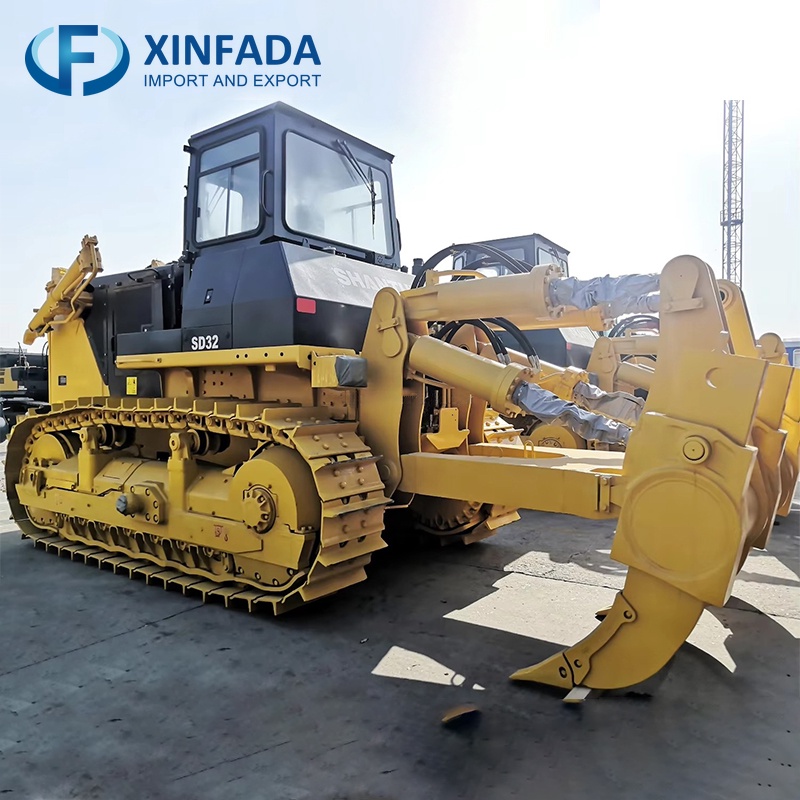

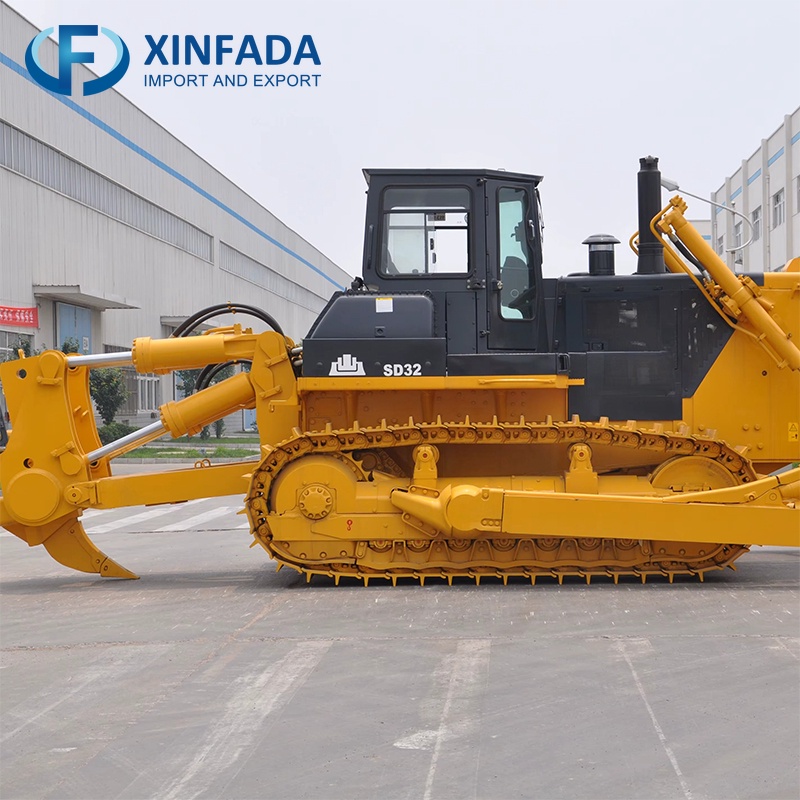

Bulldozer SHANTUI SD32
Engine Power：257kW/2000rpm
Overall Unit Weight：40200kg
Engine Model：WP12/QSNT-C345
+8615763515130
admin@xfdimpexp.com
Contact Us
Product video

Basic Information
SHANTUI SD32
Parameter NameSD32SD32CSD32WSD32DSD32R
Performance Parameters




Operating Mass (kg)40200 (Single-row, ROPS)40500 (Single-row, ROPS)40900 (Single-row, ROPS)39500 (Single-row, ROPS)37100 (Sludge scraping device, anti-roll frame)
Ground Contact Pressure (kPa)97.798.499.49690.2
Engine




Engine ModelWP12/QSNT-C345QSNT-C345WP12/QSNT-C345QSNT-C345QSNT-C345
Rated Power/Rated Speed (kW/rpm)257/2000，258/2000257/2000258/2000，257/2000257/2000257/2000
Overall Dimensions




Overall Dimensions (mm)8650*4130*37608650*4806*37608650*4130*37608650*4130*37608650*4502*3760
Driving Performance




Forward Speed (km/h)F1:0-3.6，F2:0-6.6，F3:0-11.5F1:0-3.6，F2:0-6.6，F3:0-11.5F1:0-3.6，F2:0-6.6，F3:0-11.5F1:0-3.6，F2:0-6.6，F3:0-11.5F1:0-3.6，F2:0-6.6，F3:0-11.5
Reverse Speed (km/h)R1:0-4.4，R2:0-7.8，R3:0-13.5R1:0-4.4，R2:0-7.8，R3:0-13.5R1:0-4.4，R2:0-7.8，R3:0-13.5R1:0-4.4，R2:0-7.8，R3:0-13.5R1:0-4.4，R2:0-7.8，R3:0-13.5
Chassis System




Track Center-to-Center Distance (mm)21402140214021402140
Track Shoe Width (mm)560/610/660/710560/610/660/710560/610/660/710560/610/660/710560/610/660/710
Ground Contact Length (mm)31503150315031503150
Fuel Tank Capacity




Fuel Tank (L)640640640640640
Work Equipment




Cutter TypeStraight-Tilt Blade, Angle Blade, Semi-U BladeSemi-U Coal Dozer Blade, U-Type Coal Dozer BladeRock Straight Blade, Rock Angle Blade, Rock Semi-U BladeStraight-Tilt Blade, Angle Blade, Semi-U BladeSanitation Shovel
Blade Lift Height (mm)




Digging Depth (mm)560/630/560560560/630/560560/630/560560
Ripper TypeSingle-tooth, three-toothSingle-tooth, three-toothSingle-tooth, three-toothSingle-tooth, three-tooth---
Soil Loosening Depth (mm)Single 1250, Triple 842Single 1250, Triple 842Single 1250, Triple 842Single 1250, Triple 842---

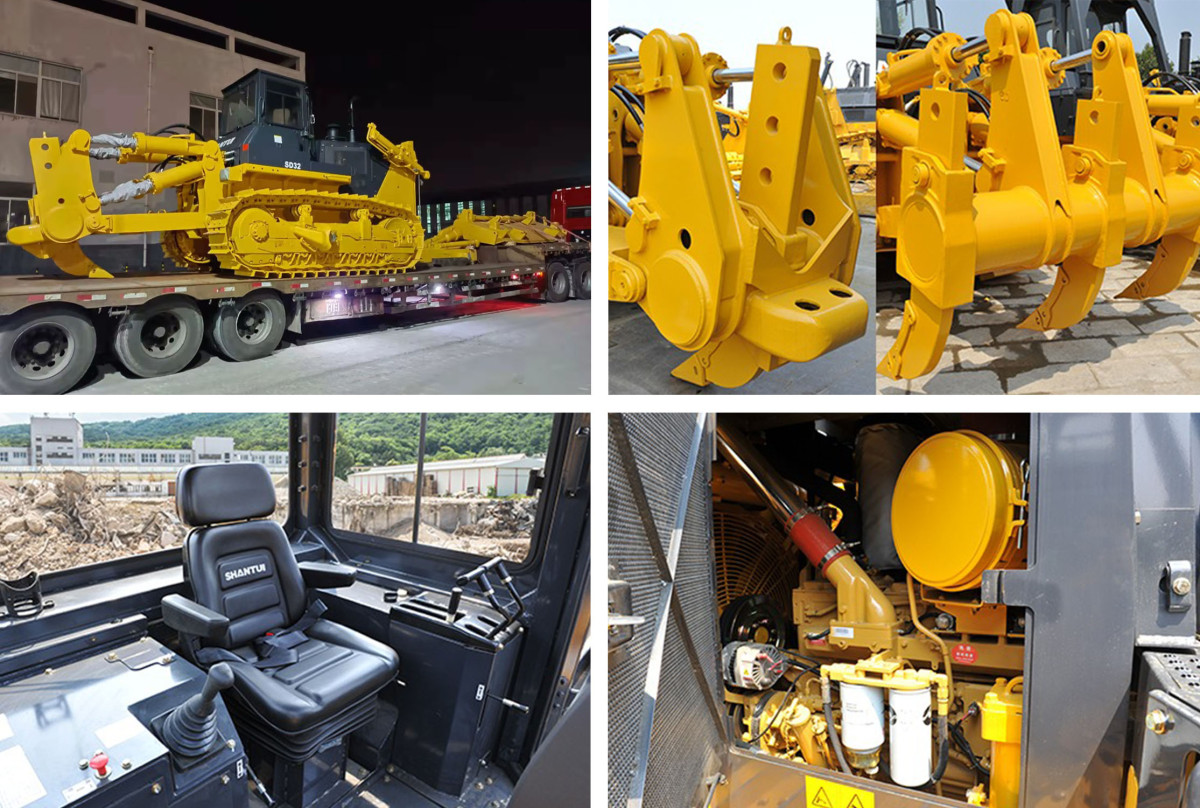

Vehicle Details
