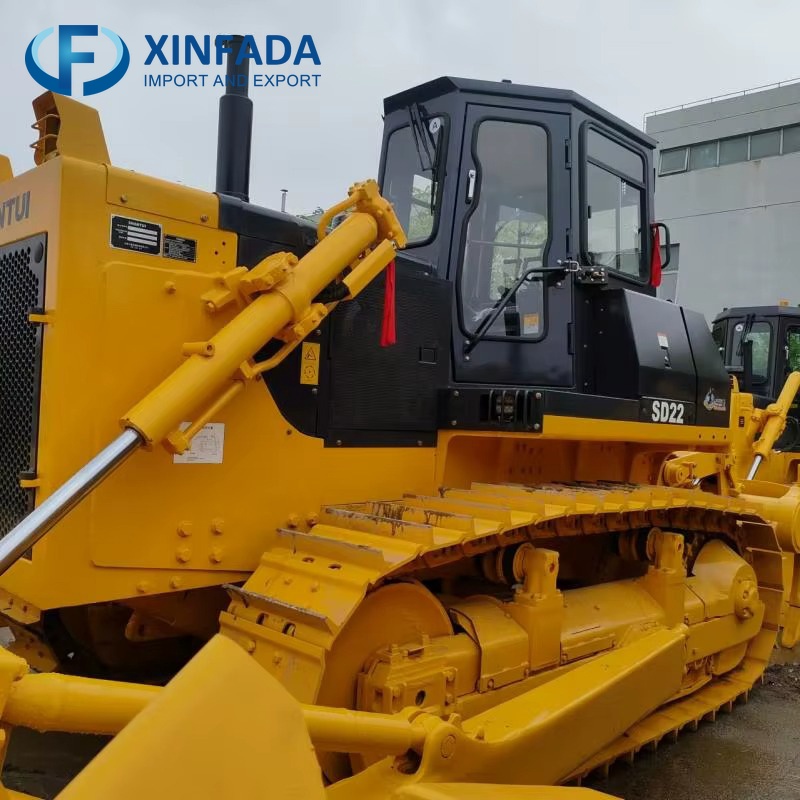

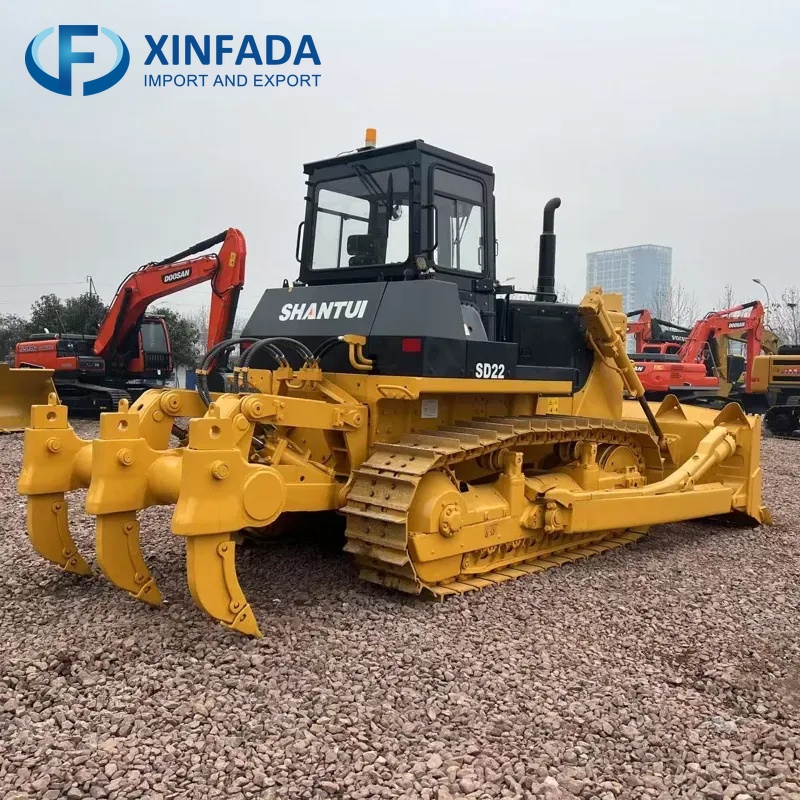

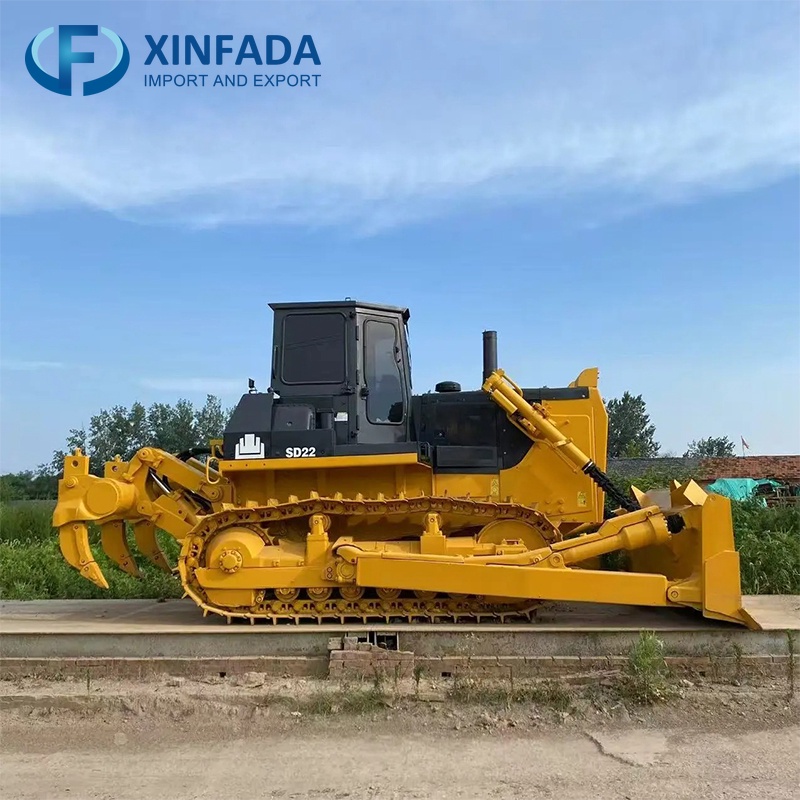

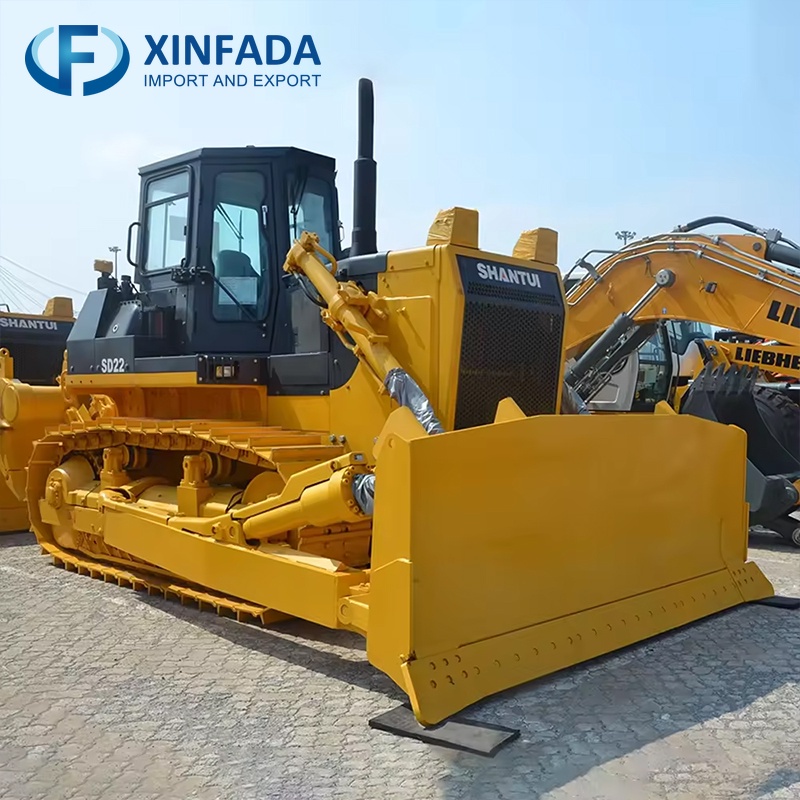

Bulldozer SHANTUI SD22

Engine Power：175kW/1800rpm
Overall Unit Weight：23450kg
Engine Model：WP12/QSNT-C235

+8615763515130

admin@xfdimpexp.com

Product video

Basic Information

SHANTUI SD22
Parameter Name	SD22	SD22C	SD22W	SD22F	SD22D	SD22E	SD22R	SD22S
Performance Parameters
Operating Mass (kg)	23450	24000	23600	24700	24600	24600	26000	25700
Ground Contact Pressure (kPa)	66	57.5	66	64	56	66	36	35.2
Engine
Engine Model	WP12/QSNT-C235	WP12/QSNT-C235	QSNT-C235	QSNT-C235	QSNT-C235	QSNT-C235	WP12/QSNT-C235	WP12/QSNT-C235
Rated Power/Rated Speed (kW/rpm)	175/1800	175/1800	175/1800	175/1800	175/1800	175/1800	175/1800	175/1800
Overall Dimensions
Overall Dimensions (mm)	549537253402	582042003402	549537253402	549537253402	549537253402	549537253402	629043653745	629043653402
Driving Performance
Forward Speed (km/h)	F1: 0-3.6, F2:0-6.5, F3:0-11.2	F1: 0-3.6,F2:0-6.5,F3:0-11.2	F1: 0-3.6,F2:0-6.5,F3:0-11.2	F1: 0-3.6,F2:0-6.5,F3:0-11.2	F1: 0-3.6,F2:0-6.5,F3:0-11.2	F1: 0-3.6,F2:0-6.5,F3:0-11.2	F1: 0-3.6,F2:0-6.5,F3:0-11.2	F1: 0-3.6,F2:0-6.5,F3:0-11.2
Reverse Speed (km/h)	R1: 0-4.3, R2: 0-7.7, R3: 0-13.2	R1: 0-4.3, R2: 0-7.7, R3: 0-13.2	R1: 0-4.3, R2: 0-7.7, R3: 0-13.2	R1: 0-4.3, R2: 0-7.7, R3: 0-13.2	R1: 0-4.3, R2: 0-7.7, R3: 0-13.2	R1: 0-4.3, R2: 0-7.7, R3: 0-13.2	R1: 0-4.3, R2: 0-7.7, R3: 0-13.2	R1: 0-4.3, R2: 0-7.7, R3: 0-13.2
Chassis System
Track Center-to-Center Distance (mm)	2000	2000	2000	2000	2000	2000	2250	2250
Track Shoe Width (mm)	560/610/660	660	560/610/660	610/660	660	560/610/660	910	910
Ground Contact Length (mm)	2730	2730	2730	2730	3050	3050	3480	3480
Fuel Tank Capacity
Fuel Tank (L)	450	450	450	450	450	450	450	450
Work Equipment
Cutter Type	Straight-Tilt Blade, Angle Blade, U-Blade, Semi-U Blade	Coal Shovel	Rock Straight Blade, Rock Angle Blade, Rock U-Blade, Rock Semi-U Blade	Straight-tilt blade, angle blade, U-blade, semi-U blade	Straight-Tilt Blade, Angle Blade, U-Blade, Semi-U Blade	Straight-Tilt Blade, Angle Blade, U-Blade, Semi-U Blade	Sanitation Shovel	Straight-Tilt Blade
Blade Lift Height (mm)
Digging Depth (mm)	540	538	540	540	540	540	550	550
Ripper Type	Single-tooth, three-tooth	Single-tooth, three-tooth	Single-tooth, three-tooth	Single-tooth, three-tooth	Single-tooth, three-tooth	Single-tooth, three-tooth	---	---
Soil Loosening Depth (mm)	Odd 695, Even 666	Odd 695, Even 666	Odd 695, Even 666	Odd 695, Even 666	Odd 695, Even 666	Odd 695, Even 666	---	---
