Name: Foton ROWOR ES5 Pro Dump Truck
SKU: 0

Product Details



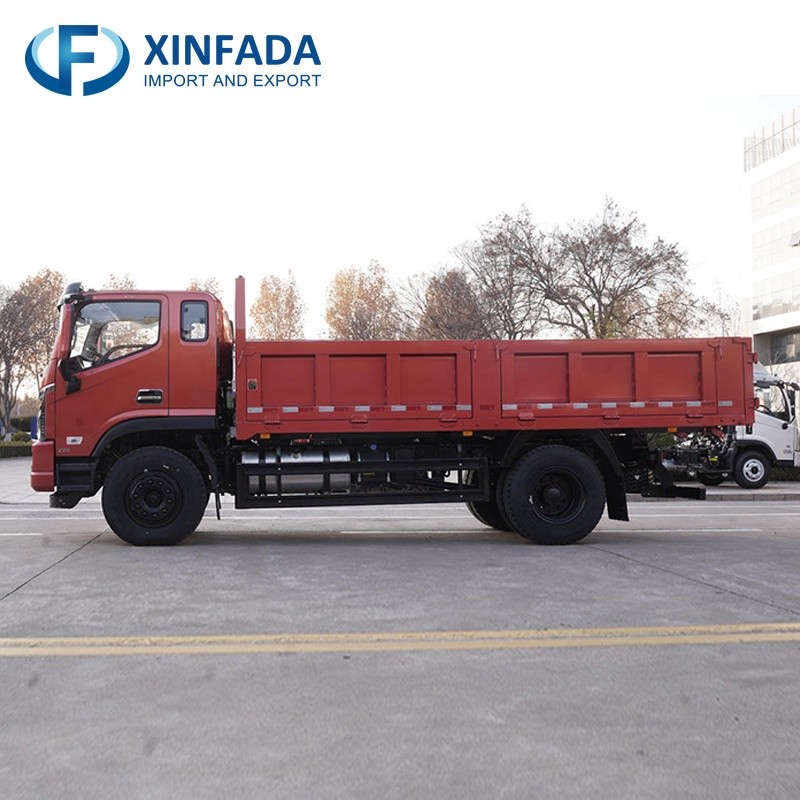

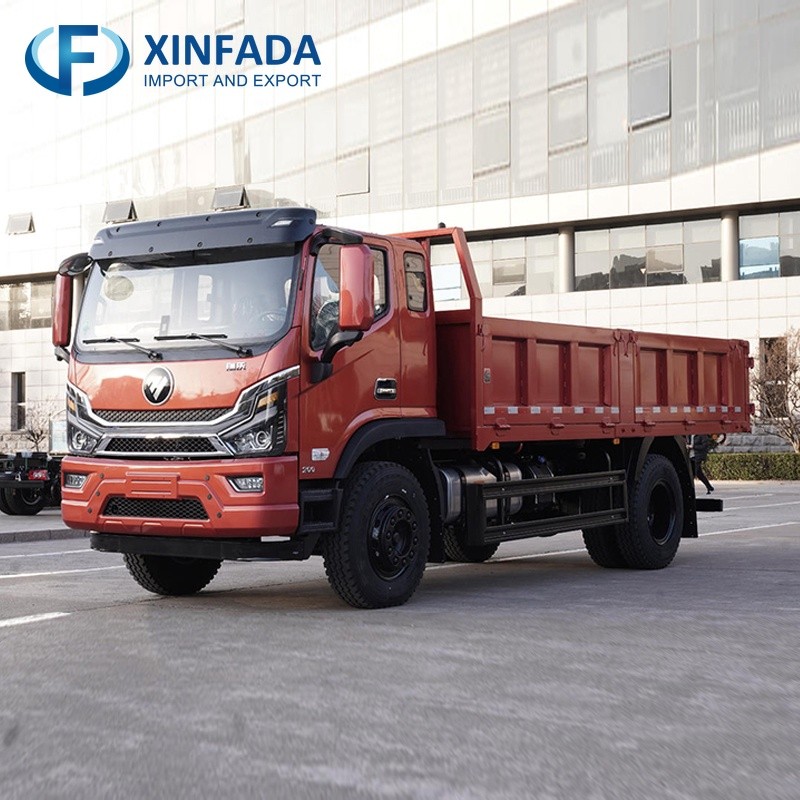

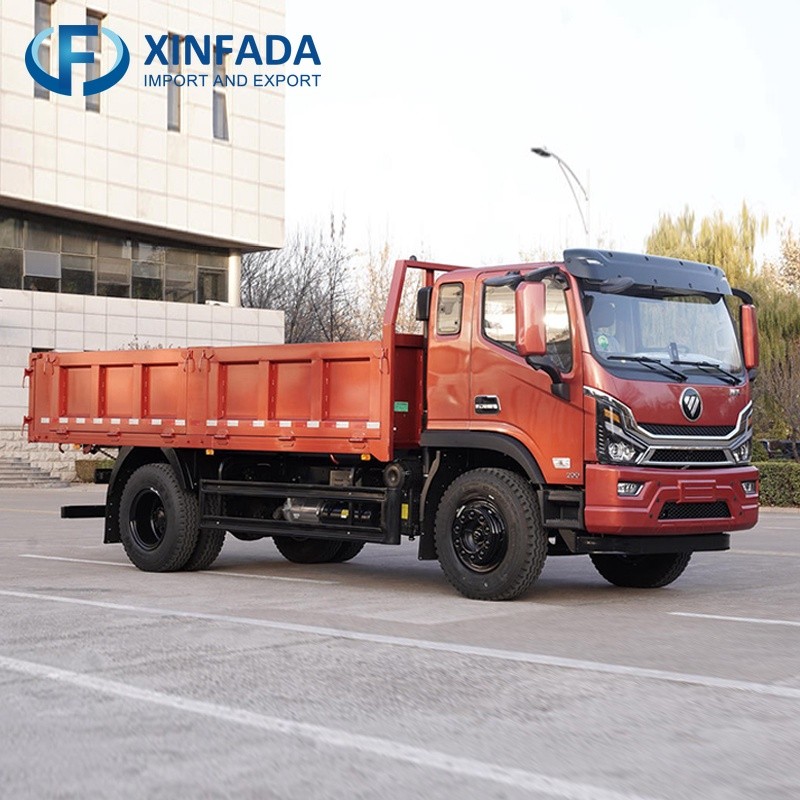

Foton ROWOR ES5 Pro Dump Truck

Drive Type：4X2
Engine Model：Yuchai，YCS04180-66
Maximum Horsepower：200，180
Transmission Model：Fast
Container Length：4.85，3.8，5.2，4.2，4

Product video

Basic Information

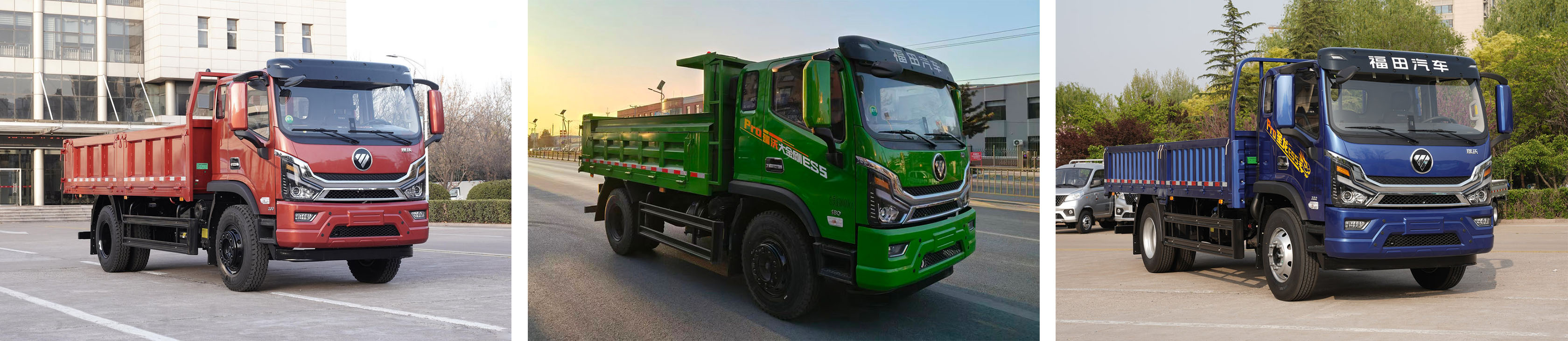

Foton Ruivo Dajingang ES5 Pro
Basic Information
Drive form	4X2	Wheelbase	3400mm
Engine	Yuchai YCS04180-66	Gearbox	Fast 8JS85E
Rear axle speed ratio	6.33	Vehicle length	6.315m
Vehicle width	2.415m	Vehicle height	2.72m
Front wheel track	1757mm	Rear wheel track	1725mm
Total vehicle weight	6.85 tons	Rated load	10.955 tons
Total mass	18 tons	Tonnage	Medium-sized truck
Approach angle	20 degrees (°)	Departure angle	20 degrees (°)
Energy type	Diesel fuel
Engine parameters
Engine Model	YCS04180-66	Maximum horsepower	180 horsepower
Number of cylinders	4 cylinders	Fuel types	Diesel fuel
Maximum output power	132kW	Displacement	4.295L
Transmission parameters
gearbox model	Fast 8JS85E	Shifting methods	Manual
Forward gear	8 gears	Number of reverse gears	2
Cargo box parameters
Cargo box length	4m	Cargo box width	2.2m

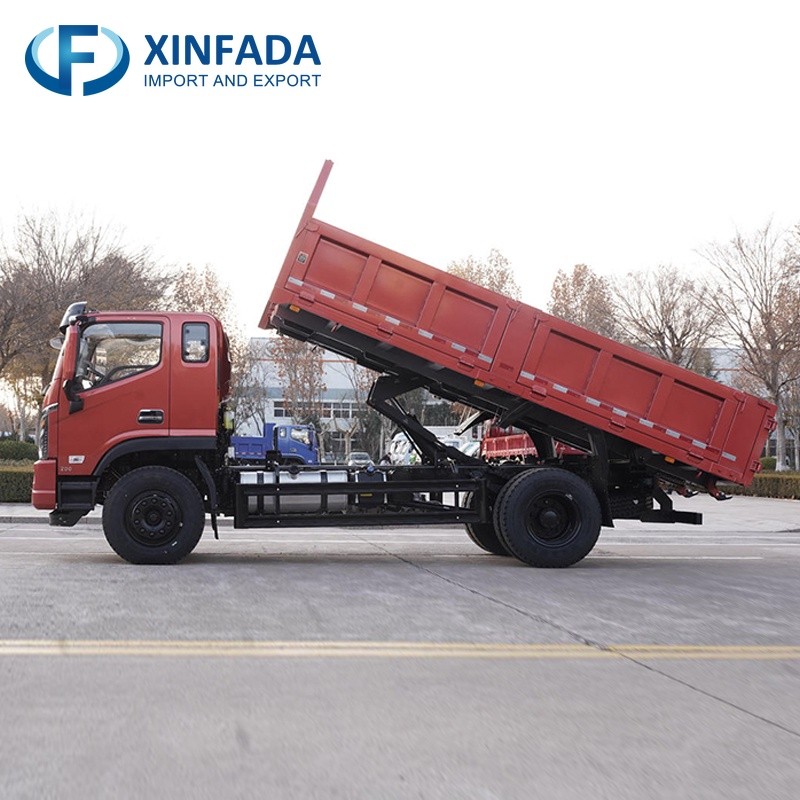

Cargo box height	0.8m	Cargo box form	Self-unloading
Unloading method	Self-unloading	Cargo box interior width	2.2

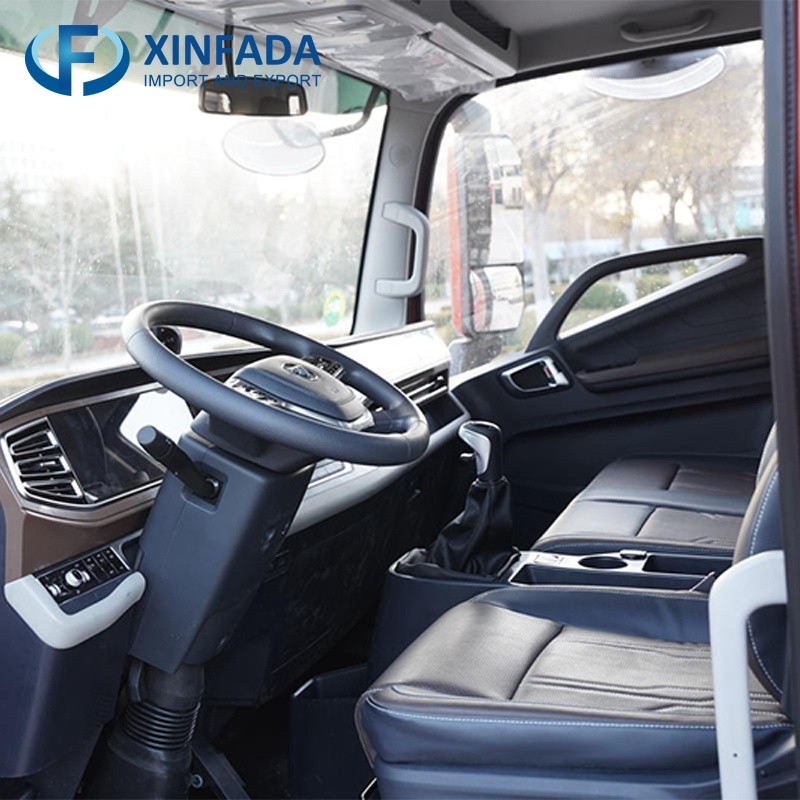

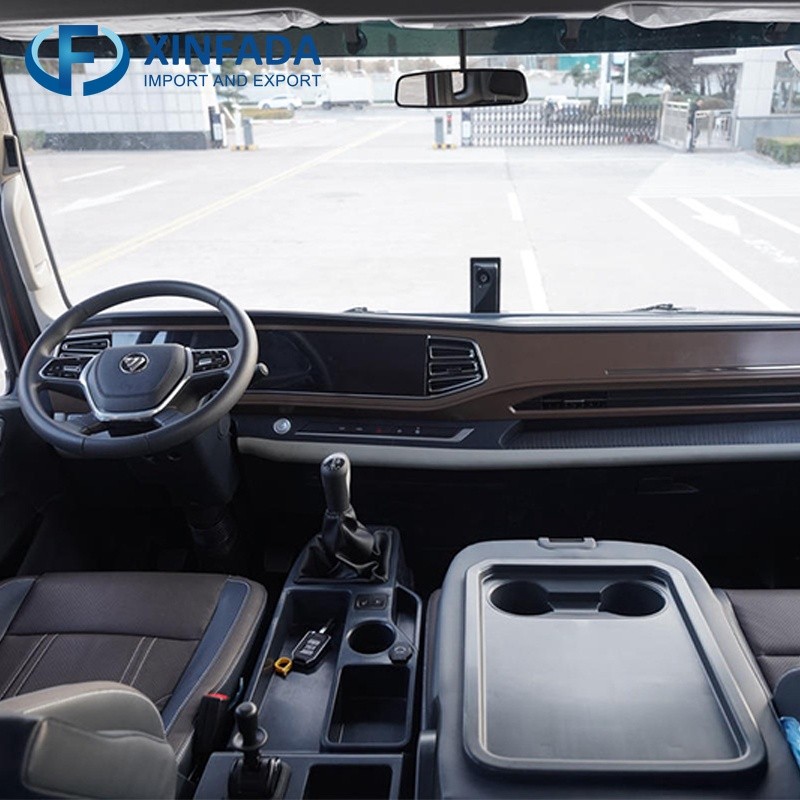

Cab parameters
Cab width	2060mm	Driver's cab	Half

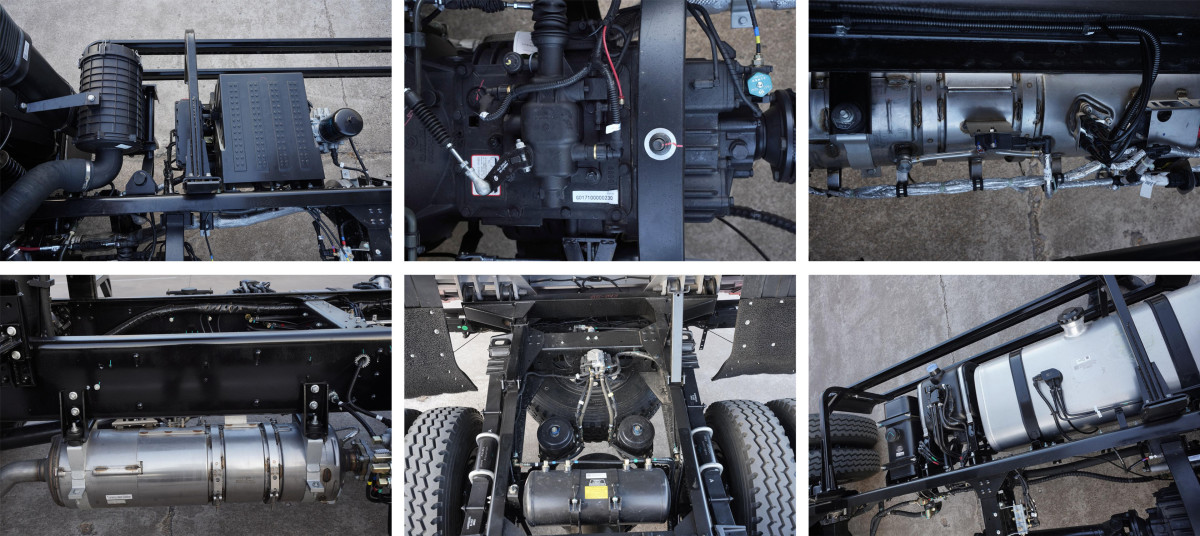

Chassis parameters
Front axle allowable load	6500kg	Rear axle allowable load	11500kg
Front axle description	4.2T	Rear axle description	The 1153Z comes standard with a 13t, 153 single-stage reduction drive axle, cast.
Speed ratio	6.33	Number of springs	10/12+9
Frame size	215x65x6+4mm
Tire
Number of tires	6	Tire specifications	10.00R20 18PR
