Product Details

<
>
FAW J6P Tipper / Dump Truck
Drive Type：8X4，6X4
Engine Model：Xichai，Weichai，Dachai
Maximum Horsepower：350，560，420，600，460，380
Transmission Model：FAW Jiefang，Fast Gear，CA12TAX230F，13JSDX280T
Container Length：5.6，6.8，9.1，8.2，8，5.8
+8615763515130
admin@xfdimpexp.com
Contact Us
Product video
Basic Information
FAW J6P Tipper / Dump Truck
Basic Information
Drive form8X4Wheelbase2000+3300+1350mm
EngineXichai CA6DM3-56E68Gearbox13-speed gearbox
Vehicle length9.955mVehicle width2.55m
Vehicle height3.4mFront wheel track2020/2020mm
Rear wheel track1878/1878mmTotal vehicle weight15.5 tons
Rated load15.37 tonsTotal mass31 tons
TonnageHeavy trucksApproach angle24 degrees (°)
Departure angle23 degrees (°)Energy typeDiesel fuel
Engine parameters
Engine ModelCA6DM3-56E68Maximum horsepower560 horsepower
Number of cylinders6 cylindersFuel typesDiesel fuel
Maximum output power415kWDisplacement12.52L
Maximum torque2600N·mMaximum torque speed1100-1400rpm
Rated speed1800rpm

Transmission parameters
gearbox model13-speed gearboxShifting methodsManual
Forward gear13 gearsNumber of reverse gears1
Cargo box parameters
Cargo box length6.8mCargo box width2.35m
Cargo box height1.5m

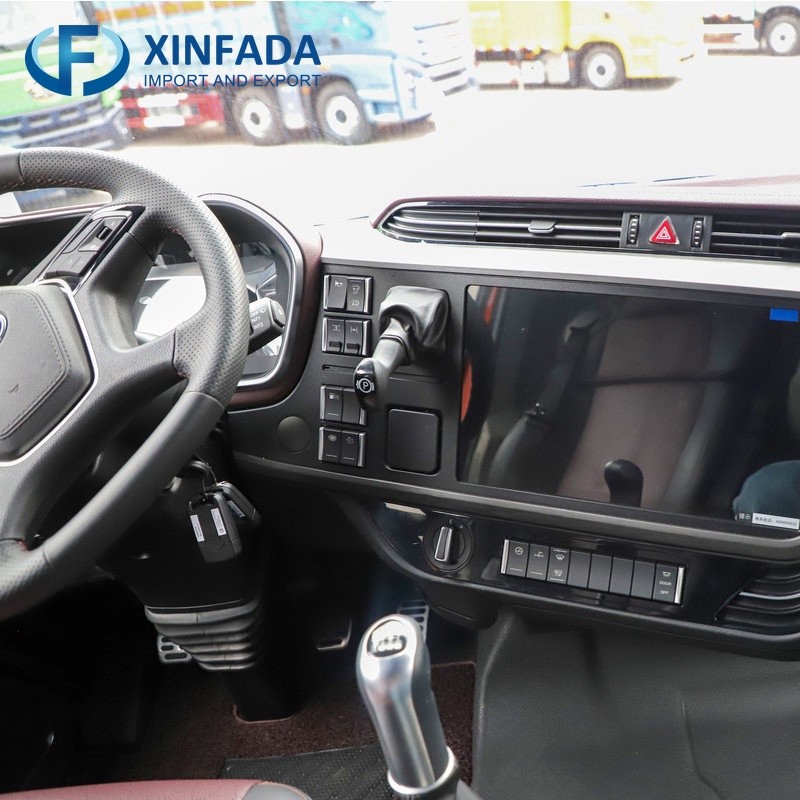

Cab parameters
Cab width2550mmCab suspensionFour-point airbag suspension
Driver's seat configurationAirbag suspension seat

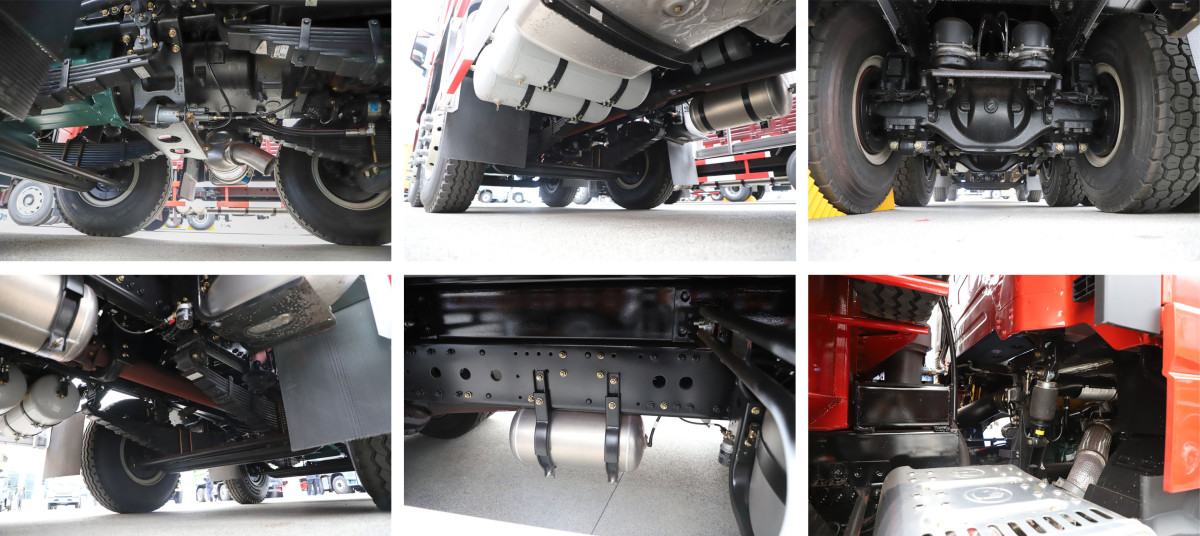

Chassis parameters
Front axle allowable load6500/6500kgRear axle allowable load18000 (two-axis assembly) kg
Frame size300x80x(8+8+5)mmNumber of springs11/13/14
Tire
Number of tires12Tire specifications12.00R20 18PR
Vehicle Details
