Product Details

<
>

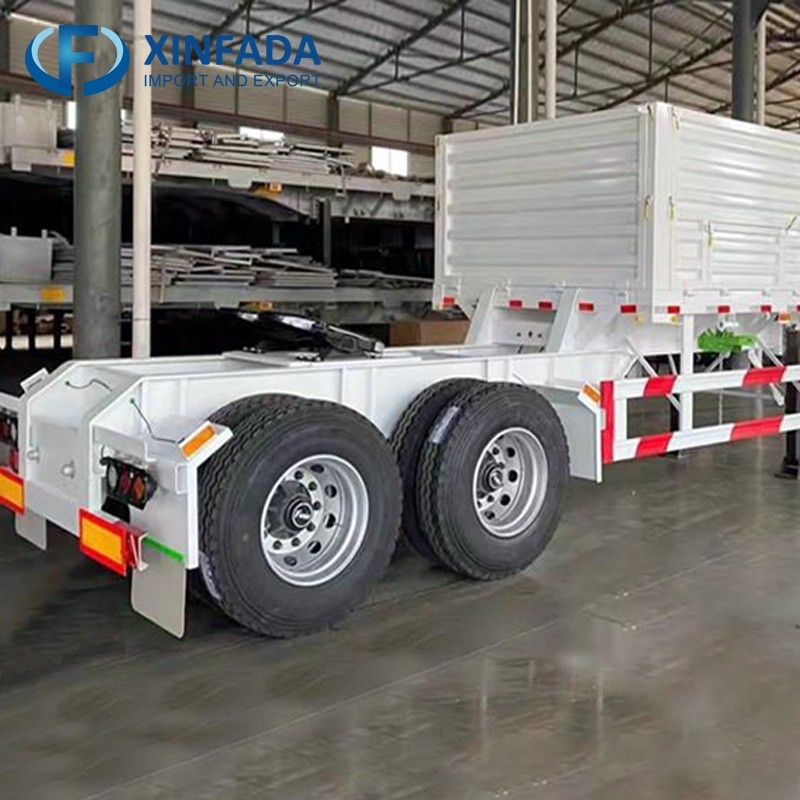

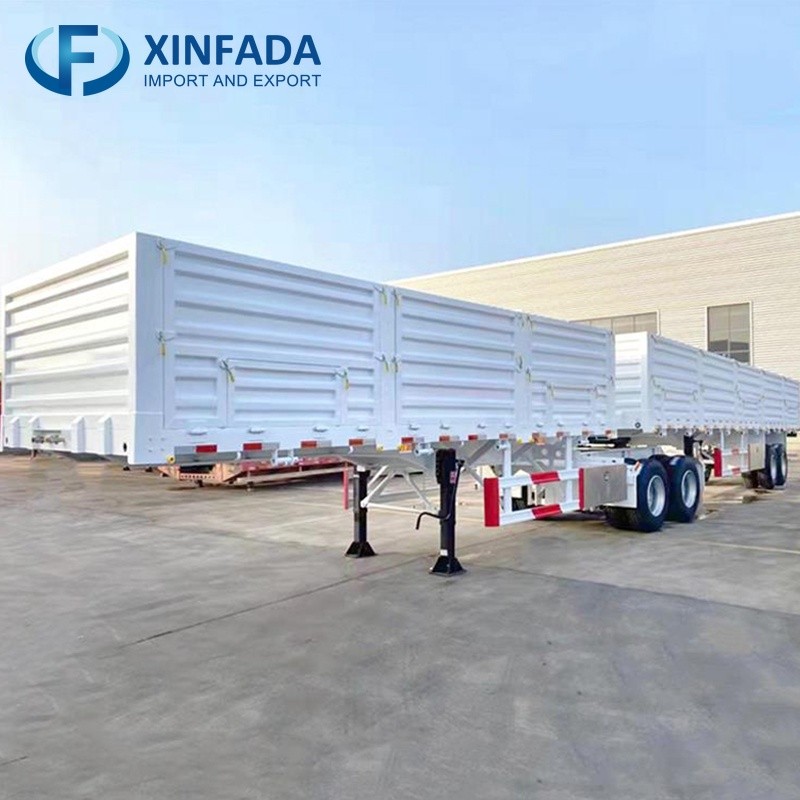

Grain Superlink Trailer
Dimension：15980 x2500 x2350mm
Loading Capacity：<60T
Axles：4 axles, 13T/16T,FUWA/ BPW/ Huajing Brand
Tire：16 units, 12.00R22.5 or 315/80R22.5
+8615763515130
admin@xfdimpexp.com
Contact Us
Product video
Basic Information
Grain Hyperlink Trailer
ModelGrain Superlink Trailer with Side Wall
Overall dimension15980*2500*2350mm
Loading capacity<60T
Axles4 axles, 13T/16T,FUWA/ BPW/ Huajing Brand
Tire16 units, 12.00R22.5 or 315/80R22.5
Rim9.00-22.5 or 9.75-22.5
SuspensionMechanical suspension
Spring Leaf90(W)mmx13(Thickness)mmx10 layers
King PinJOST brand 2.0 or 3.5 inch (bolted or welded)
Landing GearJOST brand
Main BeamHeight 500mm, Upper plate:14mm,
Middle plate:8mm, Bottom plate:16mm,
Material:Q345B steel
Side Beam16mm or 18mm steel channel
Platform3mm-thick checkered plate
Brake ChamberWABCO RE 6 relay valve;
T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks4,8,12 sets (lifting or screw type)
ValveWABCO valve
ABSOptional
LightLED light
Voltage24V
Socket(Receptacle7-pin Socket
Tool Box1m x 0.5m x 0.5m (The tool box contains 1 tire spanner,1 gudgeon sleeve and 1 cranking bar.
Its size can be tailored to suit yourneeds)
PaintingSandblasted, anti-rust chassis surface is available with 1 layer of
anticorosive primer and 2 layers of top coats
