Product Details

<
>

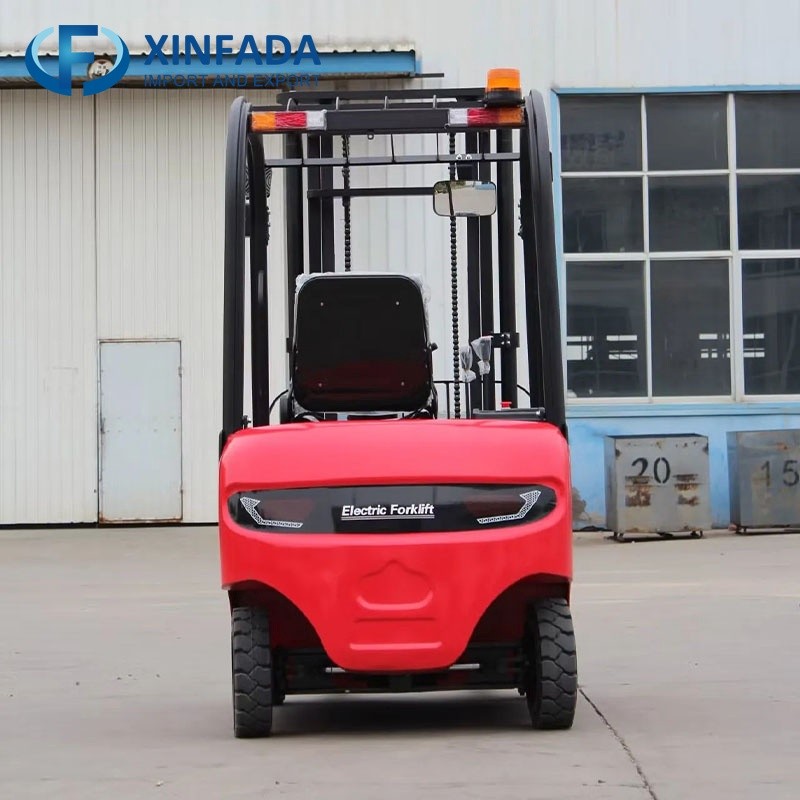

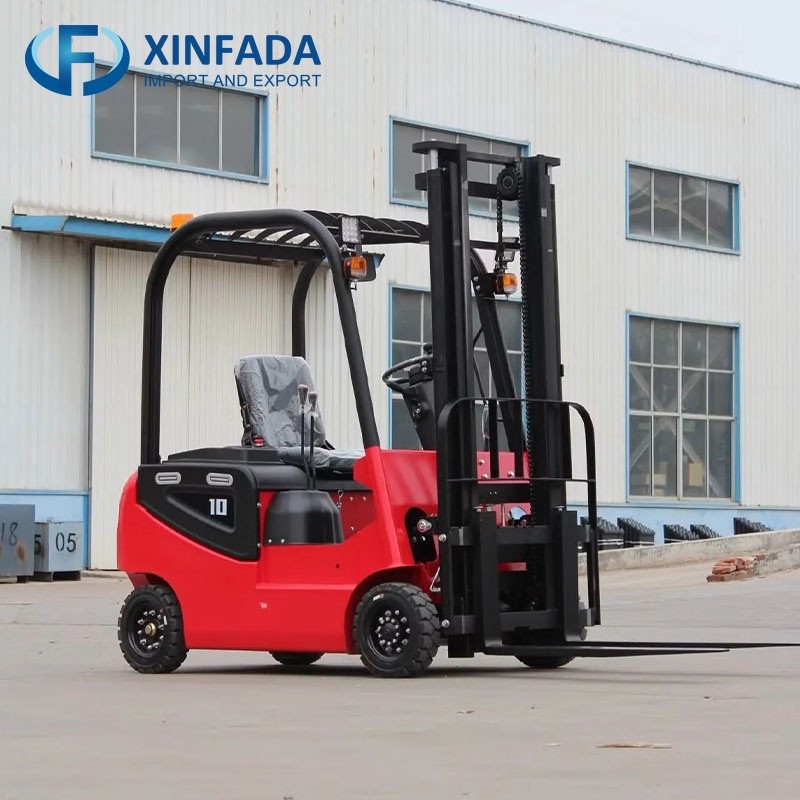

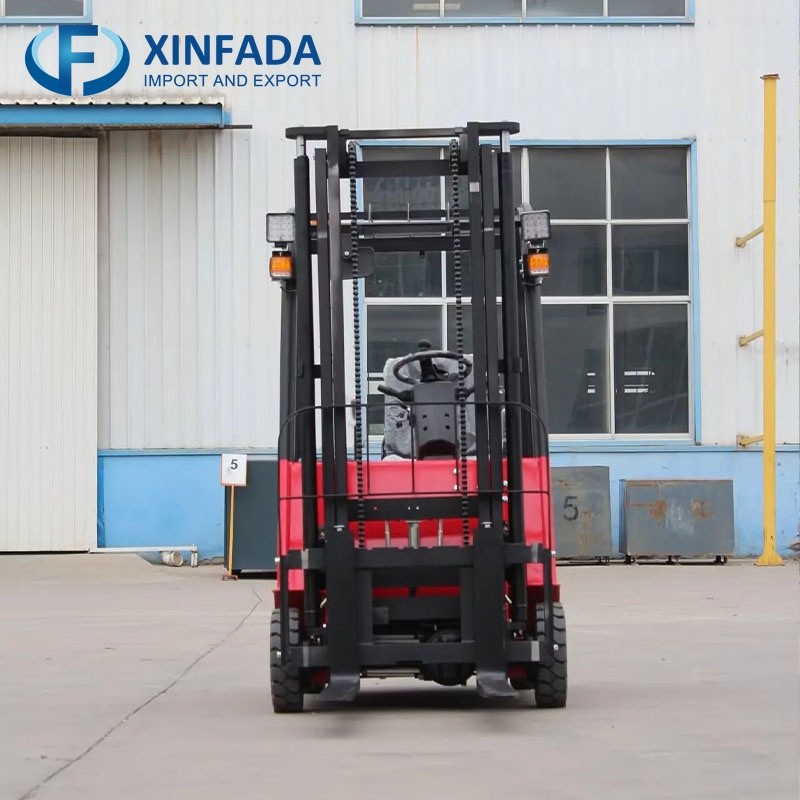

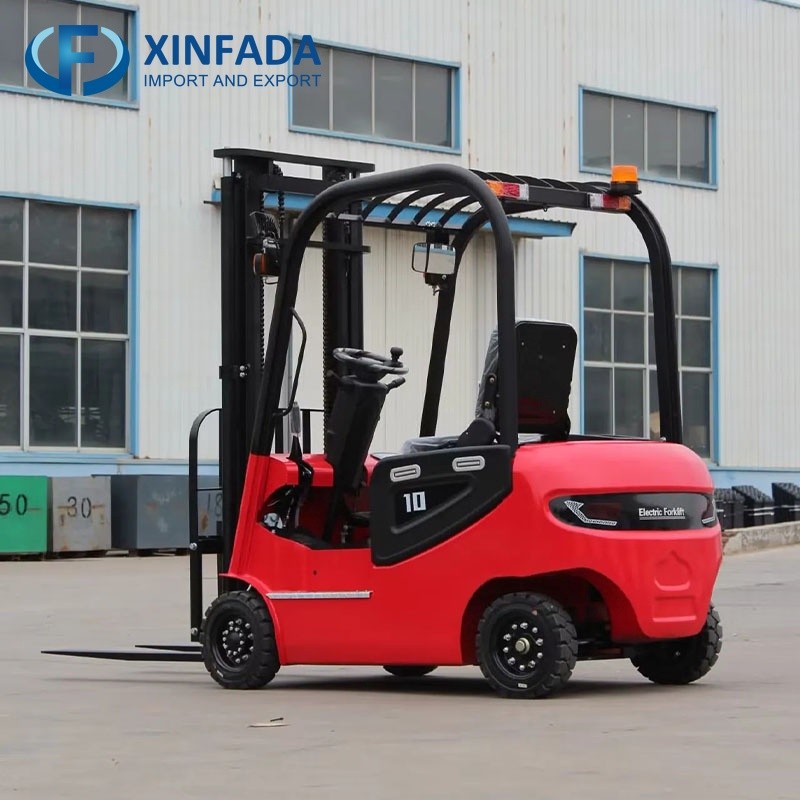

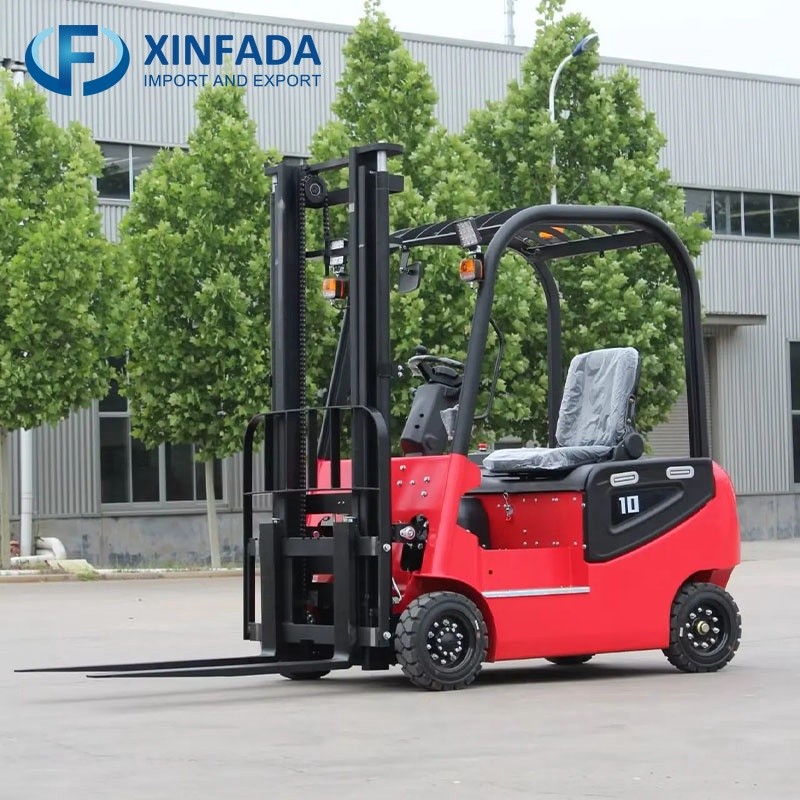

CPD Series 1-ton Electric Forklift
Rated Lifting Capacity：1.0T
Lifting Height：3m
Load Center：400mm
Min. Truning Radius：1800mm
Battery Voltage：4*12V
Battery Capacity：160AH
Drive Mode：Battery
+8615763515130
admin@xfdimpexp.com
Contact Us
Product video
Basic Information
CPD Series 1-Ton Electric Forklift
ModelUnitCPD10
Power type
Battery
Rated loadKG1000
Load center distancemm400
Driving type
Seat
Length With fork L1mm2560
Length Without fork L21640
Whole Width B800
Height Overall height(mast lowered)H12050
Height Overall height to overhead guard H21900
Height Overall height (mast extend)H33820
Distance from seat to top light L3970
Wheel base L41020
Front overhang Y300
Back overhang L5250
Front wheel tread R700
Back wheel tread P668
Min Floor clearance F90
Max lifting height H3000
Free lifting height H480
Fork changing S703/190
Min Turning radius WA1800
Min Right angle aisle width RA3400
Frame angle a/β(°)6°/12°
Max lifting speed without goodsmm/s250
Max lifting speed with full goods220
Max speed without goodsKm/h12
Max speed with full goods11
Max climbing angle%≤10
Whole weightKg1730
Number of wheels
2x/2
Tyre type (Front/Rear)
Solid tyre
Front Tyre
15x4 1/2-8
Rear Tyre
3.50-5
Hand Brake
Hydraulic Pedal
Brake type
M-Hand
Battery Volt/ capacityV/Ah2X24V/150
Driving motor powerKw4.0AC
Oil pump motor power3.0AC
Container loading plan (numbers)20GP6
Container loading plan (numbers)40HQ14

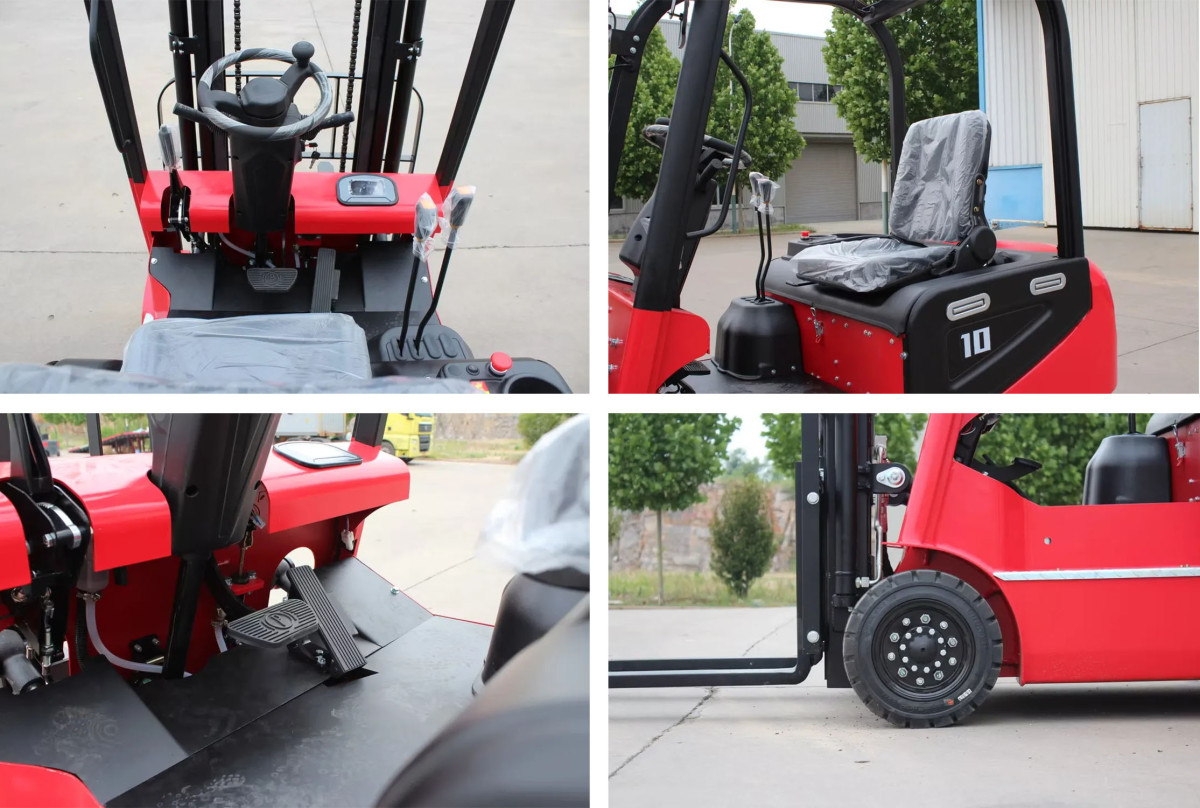

Vehicle Details
